Modernization

Established in 2001, VM Elevator Pte Ltd specializes in new build, maintenance, installation, and modernization of a wide range of elevators and escalators.
We are proud to serve you as one of the leading manufacturers and contractors of lift systems in Singapore.

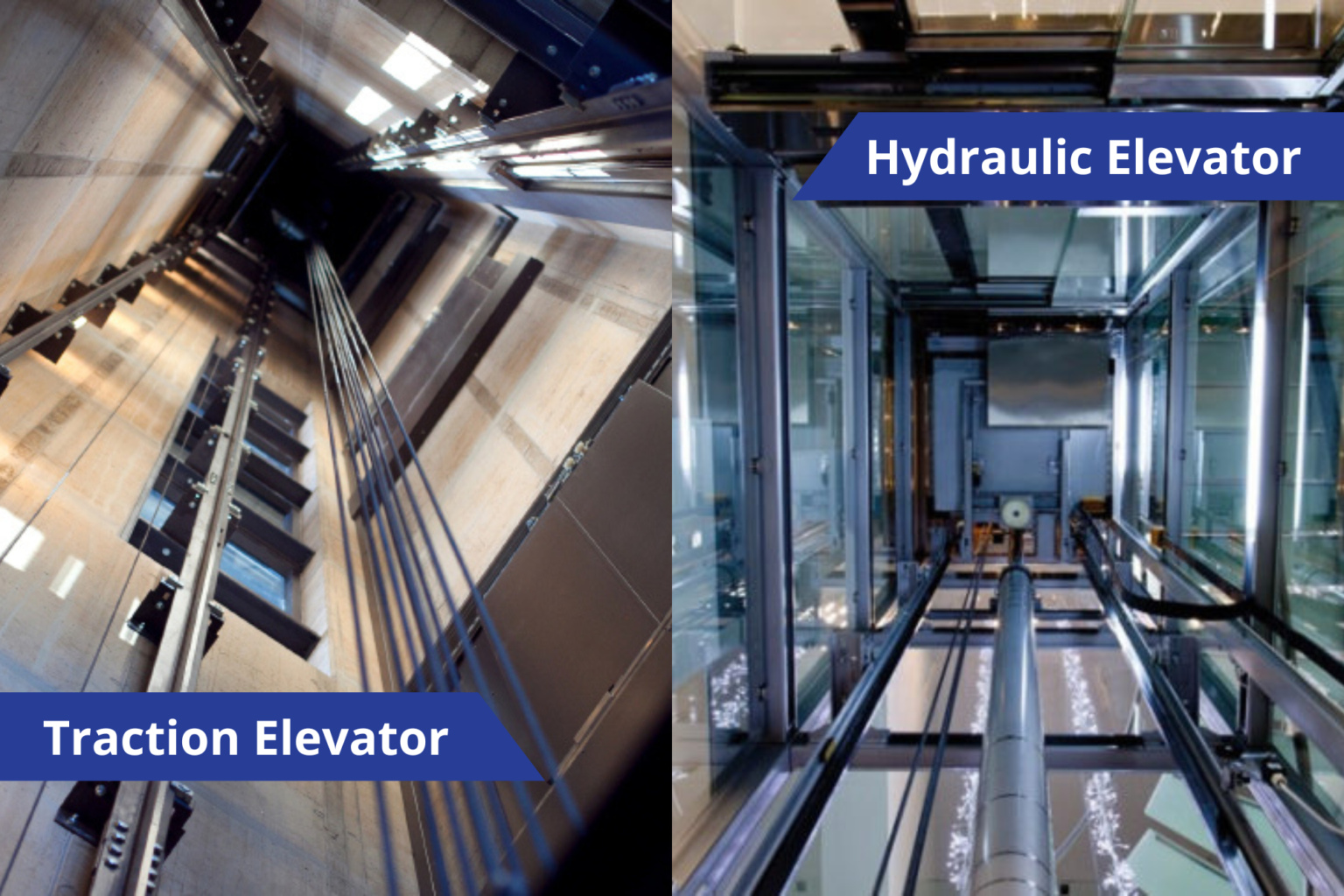

Hydraulic Lift Conversion to Traction Lift

  • Existing system of hydraulic lift could be converted to traction lift.
  • Provisional analysis and consideration will be made on pit depth and over-head ceiling.
  • Safety provision will be throughly considered for conversion program from hydraulic to traction Lift having constraint of low pit depth and overhead ceiling.

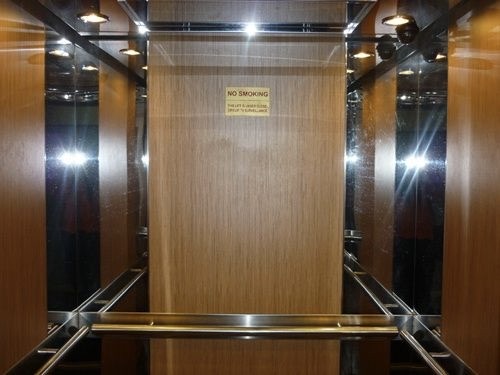

Lift Interior Finishing

VM Elevator provides a wide range of high-quality, durable, and aesthetically pleasing options for car interior finishes in the following areas:

Car Wall Panel

  • Painted car finishes with various RAL colour codes for client to select.
  • Patterned and plain hardwearing PVC coated skin plate.
  • Melamine or Formica laminated panel, including wood effect finishes in a variety of delightful colours.
  • 304 standard brushed stainless steel panel cabins.
  • Super mirror finish stainless steel and polished patterned stainless steel.
  • Decorative mirror design.

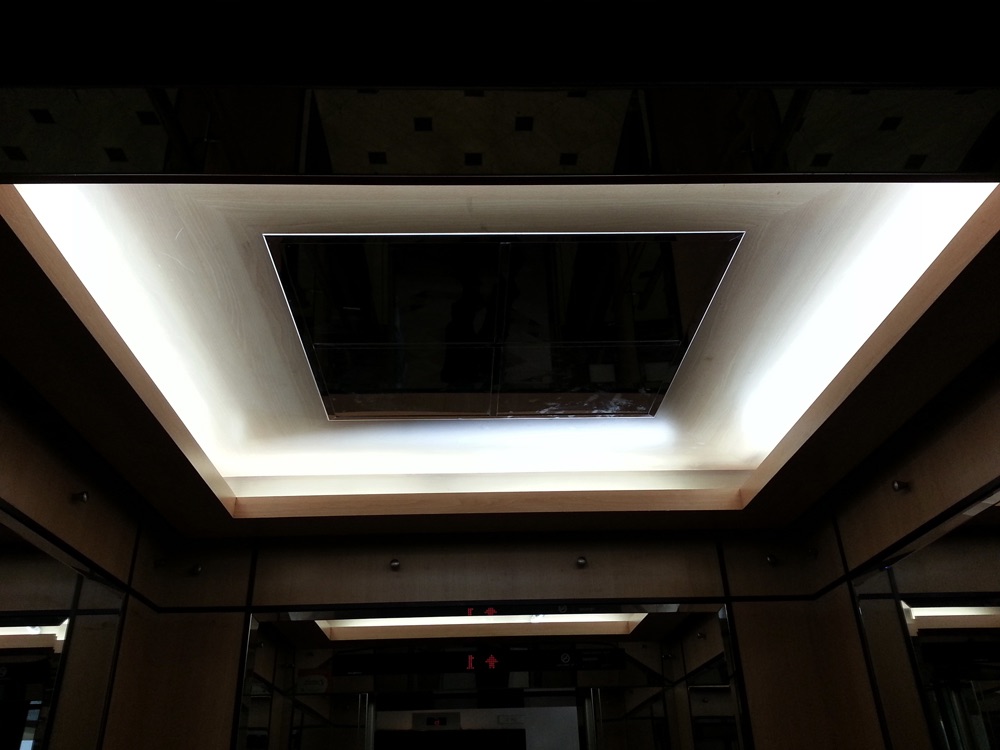

Car Ceiling

  • Standard florescence warm lighting.
  • Energy saving LED lighting.
  • Energy saving PLC down lighting.
  • Anti-glare light diffuser.
  • Decorative lighting canopies.
  • Emergency lighting.

Car Flooring

  • Standard rubber flooring.
  • Solid granite marble flooring.
  • Amtico flooring.

Landing & Car Door

  • Painted finishes door.
  • PVC skin plate door.
  • 304 stainless steel door finishes.
  • Standard box frame.
  • Multi-beam door sensor panel.

Handrail

  • Polished stainless steel handrail.
  • Matt finish stainless steel handrail.
  • Wood finish handrail.

Additional Features

  • Braille/tactile audible call button.
  • Digital & LCD floor position indicator.
  • Direction arrows.
  • Overload indicator.
  • Full height infrared door detector.
  • Voice synthesiser.

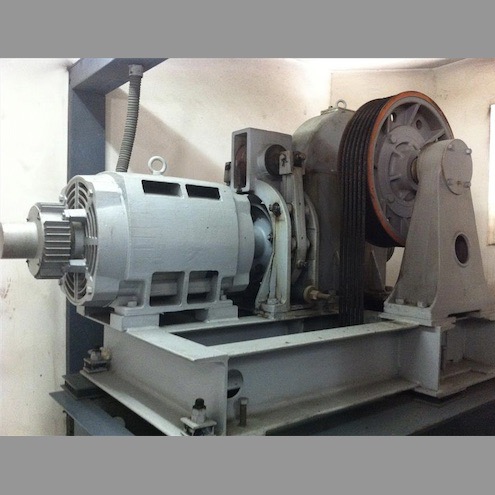

Traction Motors
Traction Motors

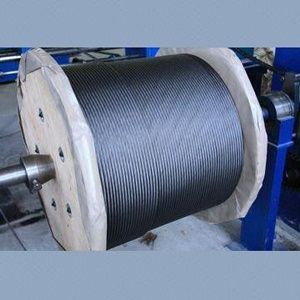

Main Ropes
Main Ropes

Traction Motors & Main Ropes

Geared traction machines are driven by AC or DC electric motors. In this design, power is transmitted through a worm-and-gear-type reduction unit, which turns the hoisting sheave. Although the lift speeds are slower than those in typical gearless elevators, the gear reduction allows for effective load handling.

Characteristics of Geared Traction Machines:

  • They require a less powerful motor to turn the sheave compared to gearless systems.
  • These elevators typically operate at speeds ranging from 38 to 152 meters (125–500 ft) per minute and can carry loads of up to 13,600 kilograms (30,000 lb).
  • An electrically controlled brake, located between the motor and the reduction unit, stops the elevator and holds the car at the desired floor level.

In residential buildings and low-traffic commercial applications, single-speed or two-speed AC hoist machines are commonly used. With the availability of cost-effective solid-state AC drives, infinitely variable speed AC motors can now be used universally. This brings the benefits of older motor-generator-based systems, without the disadvantages in efficiency and complexity.

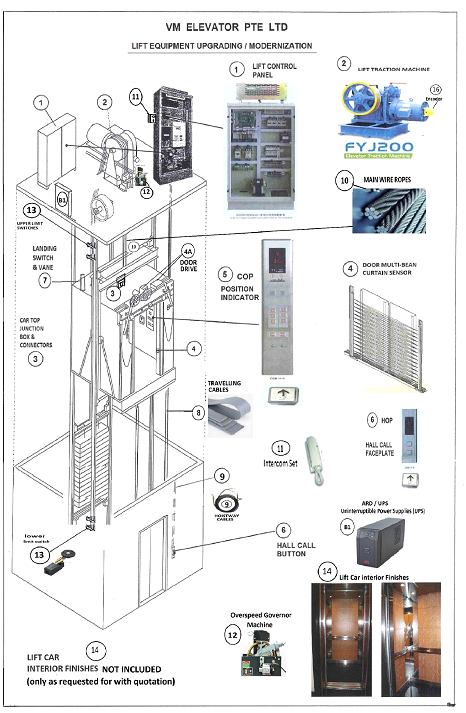

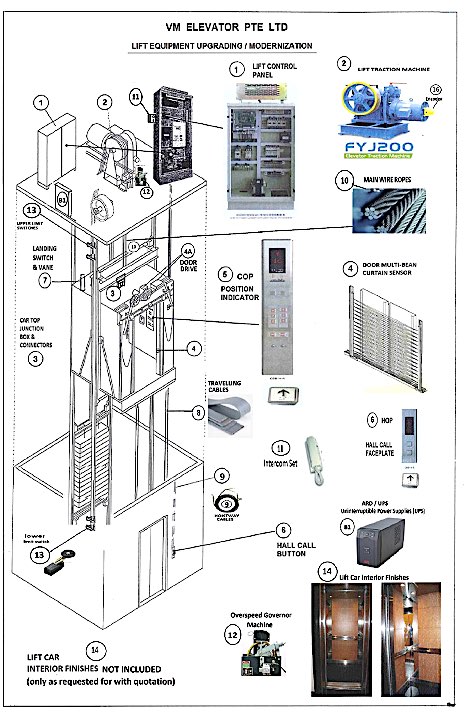

Lift Equipment Upgrading / Modernization

1.
Lift Control Panel
2.
Lift Traction Machine, Traction Motor Subject to Separate Quotation
3.
Car Top Junction Box
4.
Car Door Multi-Beam (Curtain Sensor)
4A.
Car Door Driver Unit
5.
COP (Car Operations Button / Position Indicator)
6.
HOP (Hall Operations Button) Hall Call Face Plate
7.
Lift Landing Switcher & Vane (For Leveling)
8.
Travelling Cable (connection from Car to Controller)
9.
Lift Hoist Way Cable (connection for Hall button to Controller)
10.
Main Wire Ropes (Hoisting Lift)
11.
Lift Car / Motor Room Intercom Set
12.
Over Speed Governor Machine Subject to Separate Quotation
13.
Lower / Upper Limit Switchers
14.
Lift Car Interior Finishes (Car Panel Cosmetic), Subject to Separate Quotation
15.
Traction Motor Encoder
B1.
UPS Uninterrupted Power Supply / ARD Automatic Rescue Device
These power failure rescue devices will bring the lift to the nearest landing floor.
B2.
EBOPS (Emergency Battery Operation Power Supply)
(1) Lighting and (1) Fan blower will continue to be operational during power failure.
